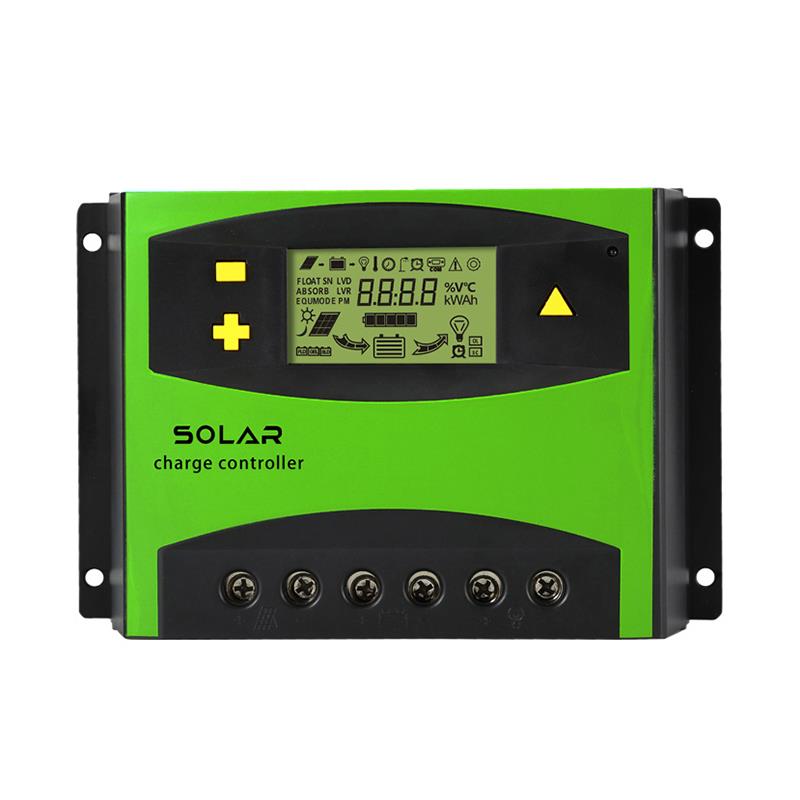

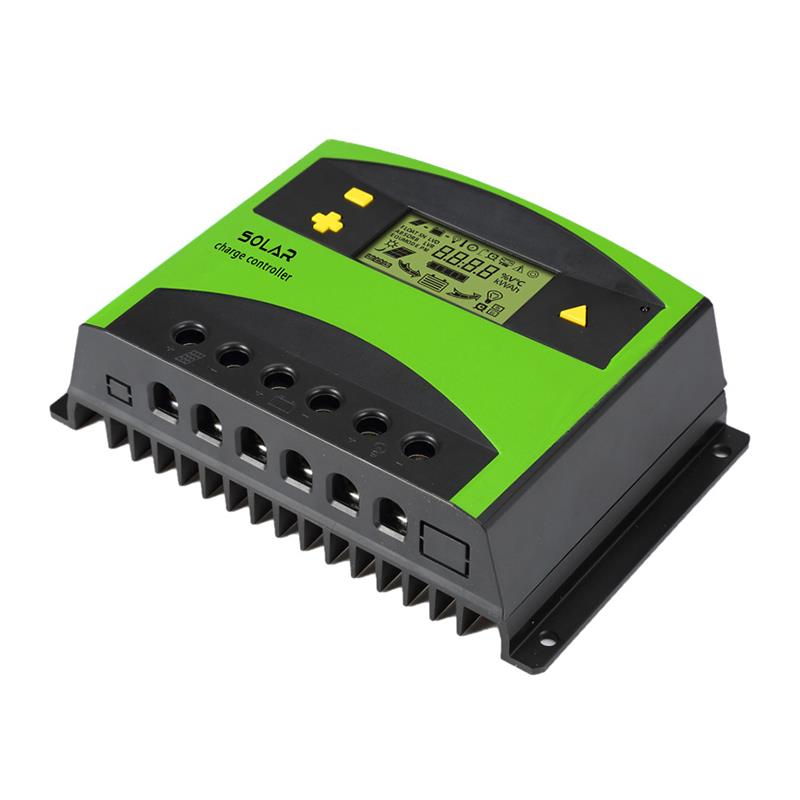

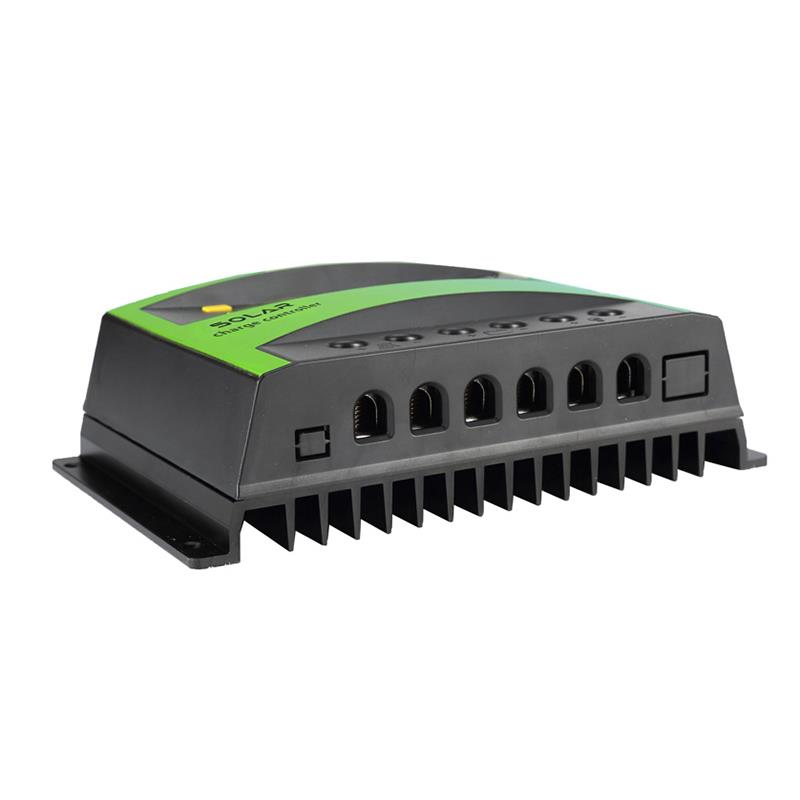

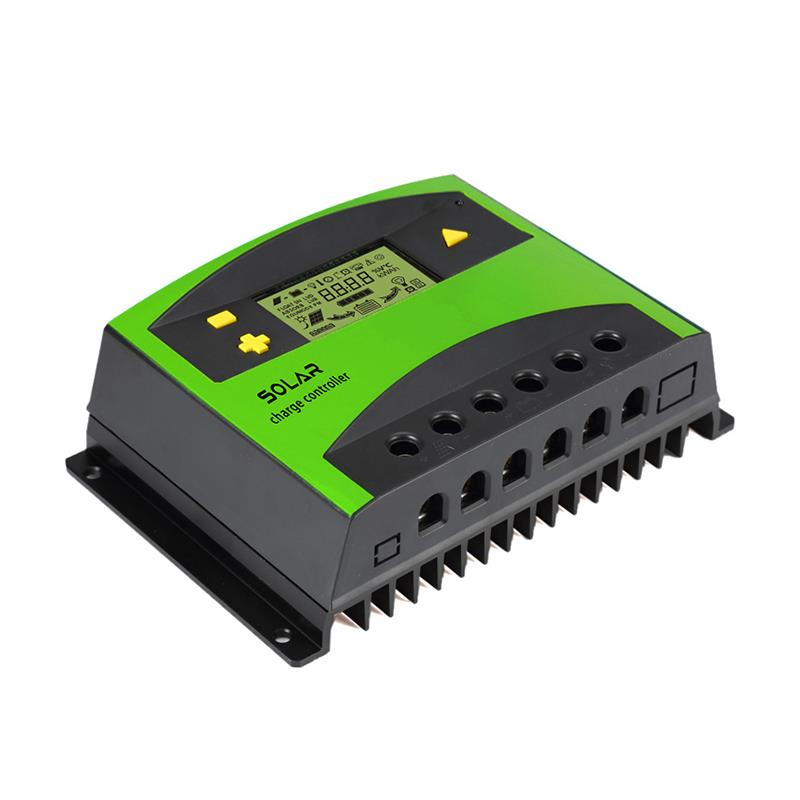

50A / 60A PWM Solar Controller

By adjusting the bias of the base of the transistor or the gate of the MOS tube , the on-time of the transistor or MOS tube is changed according to the change of the corresponding load, thus realizing the change of the output of the switching regulator power supply
Mode LS50A LS60A
Maximum charge current 50A 60A
Maximum discharge current 50A 60A
System voltage 12/24V or48V
The battery type Lead acid battery
Solar panel maximum input voltage 50V
Floating voltage 13.8V(13-15V),27.6V(26-30V),55.2V(52-60V)
Increase the charge 14.4V/28.8V/57.6V The battery voltage is below 12V/24V/48V
Battery overpressure 15V/30V/60V
Protection Input reverse YES
Self loss ≤13 MA
connection protection Load over current Yes,every two seconds to restart
Temperature compensation -24mv/℃,-48mv/℃,,Relative to 12V/24V system.
Operating temperature -20℃~ 55℃
Waterproof level IP32
Product Size(mm)/Weight(g) 187×122×57mm/680g
Packing size(mm) 500×500×450mm
Packing quantity(pes) 50

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
