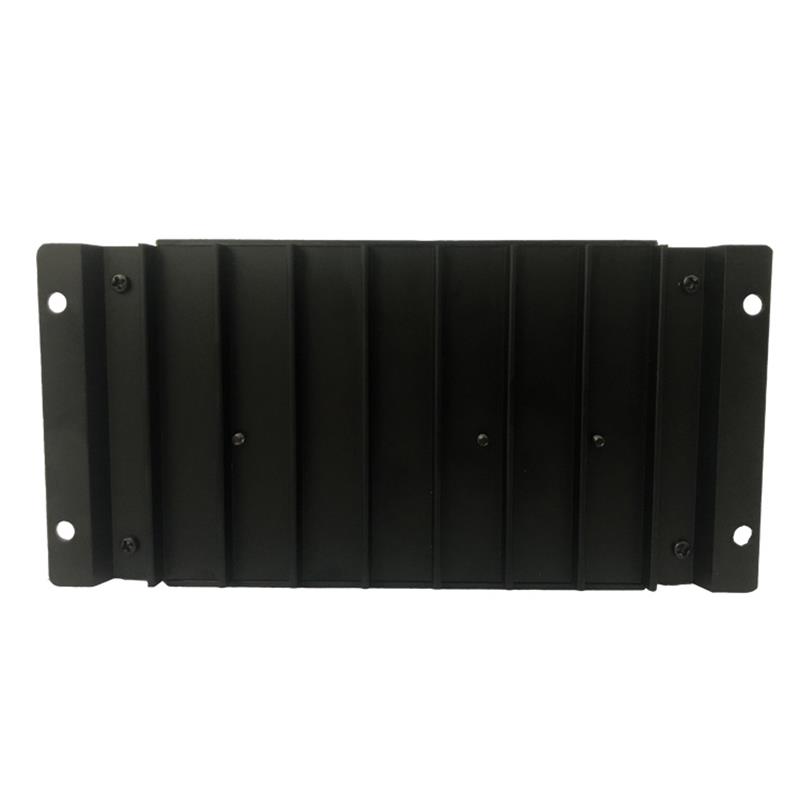

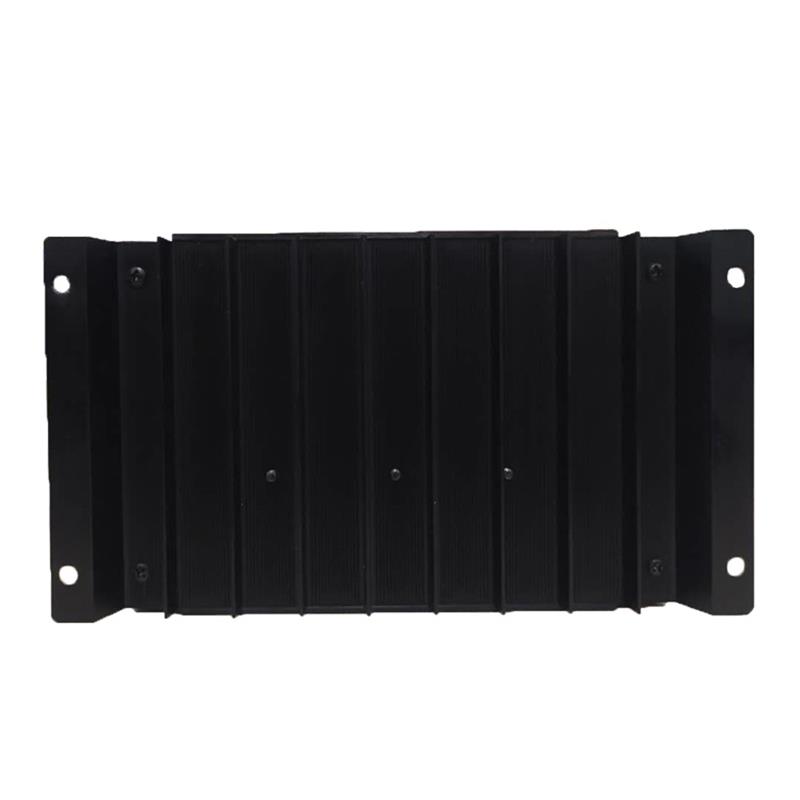

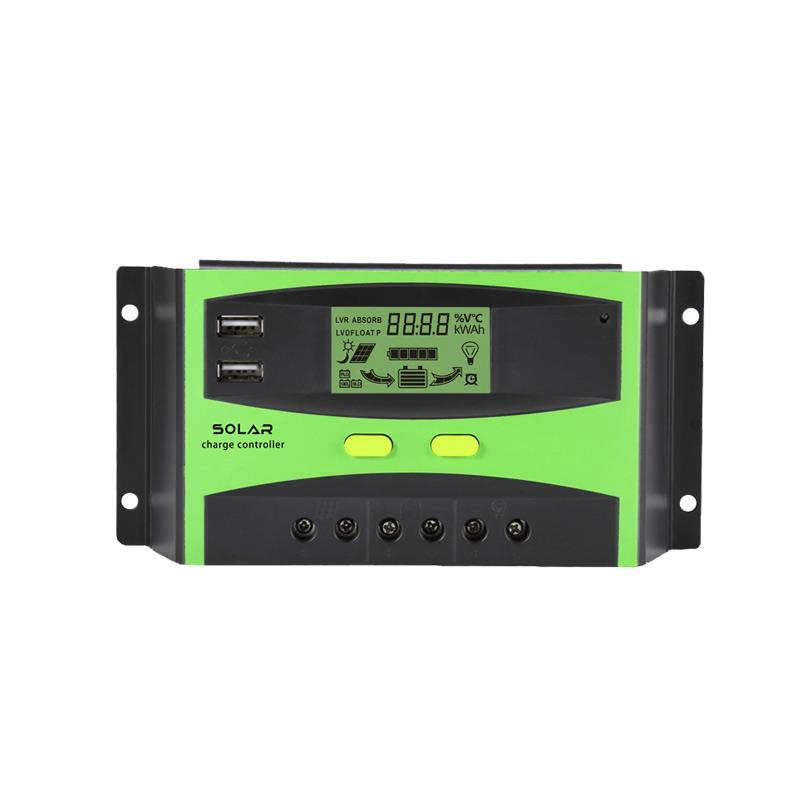

10A PWM Solar Controller

By adjusting the bias of the base of the transistor or the gate of the MOS tube , the on-time of the transistor or MOS tube is changed according to the change of the corresponding load, thus realizing the change of the output of the switching regulator power supply
Model LS10A LS20A LS30A S40A
Maximum charge current 10A 20A 30A 40A
Maximum discharge current 10A 20A 30A 40A
System voltage 12/24V or 48V
The battery type Lead acid battery
Solar panel maximum input voltage 50V
Floating voltage 13.8V(13-15V),27.6V(26-30V),55.2V(52-60V)
Increase the charge 14.4V/28.8V/57.6V The battery voltage is below 12V/24V/48V
Battery overpressure 15V/30V/60V
Protection Input reverse YES
Self loss ≤13 MA
connection protection Load over current Yes,every two seconds to restart
Temperature compensation -24mv/℃,-48mv/℃,,Relative to 12V/24V system
Operating temperature -20℃~ 55℃
Nat  proof ley IP32
Product Size(mm)/Weight(g) 187×90×47mm/310g 195×105×50mm/350g
Packing size(mm) 550×440×280mm 550×430×340mm
Packing quantity(pcs) 50
