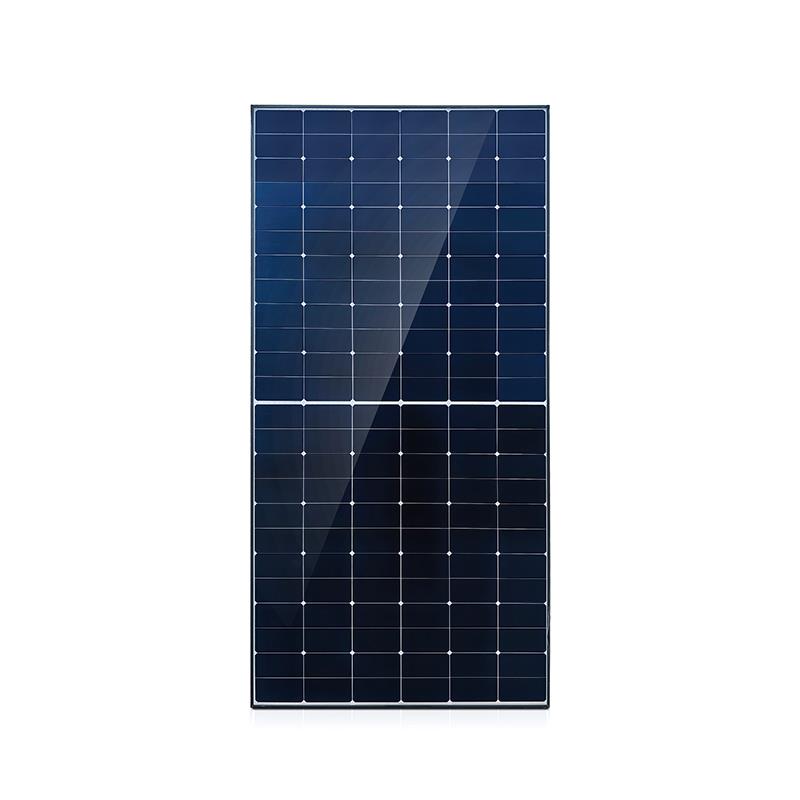

Solar panels

The core part in the solar power generation system. Its main function is to convert the sun's light energy into electrical energy, and the output DC power is deposited in the storage battery.
TEM QS405-120HM12 Qs505-150HM12 Qs500-100HM10 10HM10 20HM10 326M10
STC/NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Max.Power(Pmax) 405 306 505 382 500 379 550 417 600 454 660 500
Opt.
OperatingCurrent(Imp)
11.77 9.41 11.75 9.43 17.36 14.14 17.4 14.19 17.44 14.18 17.44 14.18
Opt.
OperatingVoltage(Vmp)
34.4 32.5 43 40.6 28.8 26.8 31.6 29.4 34.4 32 37.8 35.3
ShortCircuitCurrent(Isc 12.34 9.95 12.35 9.94 18.55 14.95 18.52 14.92 18.52 14.92 18.52 14.92
OpenCircuitVoltage(Voc) 41.4 38.9 51.9 49 34.5 32.5 37.9 35.7 41.5 39.1 41.6 43
ModuleEfficiency 0.211   0.211   0.209   0.21   0.212   0.212
ModulePowerTolerance 0/±5W
OperatingTemperature 40℃~ 85℃
Max.SystemVoltage 1500VDC-(H)
Max.SeriesFuseRating 25A/30A
ApplicationLevel A
STC Iradiance 1000W/m,Celltemperature25℃,Spectrum AM1.5
NOCT rradiance 800W/m²,Cell temperature20℃,Spectrum AM1.5,Wind speed 1m/s



MECHANICALDATA QS405-120HM12 QS505-150HM12 QS500-100HM10 QS550-110HM10 QS600-120HM10 QS660-132HM10
Cell Type 210*210mm Monocrystalline,10BB 210*210mm Monocrystalline,12BB
Cell Arrangement 120(5*12 5*12) 150(5*15 5*15) 100(5*10 5*10) 110(5*11 5*11) 120(6*10 6*10) 132(6*11 6*11)
Dimensions 1754*1096*35mm 2176*1096*35mm 2185*1098*35mm 2384*1096*35mm 2172*1303*35mm 2384*1303*35mm
Weight 21.0kg±3% 26.3kg±3% 26.5kg±3% 28.6kg±3% 30.9kg±3% 35.7kg±3%
Front Glass 3.2mm,High Transmission,Low Iron,Tempered Glass
Frame Anodized aluminum alloy
J-Box IP68
Cable TUV(2pfg1169:2007)4.0mm²(0.006inches m),(-)300/1100mm(43.3inches)and( )300/1100mm(43.3inches)
Connector MC4



ACKINGSPECIFICATION
ltem 20GP 40HQ 17.5M Single Package(40HQ,2PCS/CTN)
1754*1096*35mm 312PCS 806PCS 1520PCS 850PCS
2176*1096*35mm 260PCS 620PCS 1280PCS 588PCS
2185*1098*35mm 266PCS 620PCS 1220PCS 684PCS
2384*1096*35mm 208PCS 600PCS 1120PCS 624PCS
2172*1303*35mm 212PCS 550PCS 1008PCS 584PCS
2384*1303*35mm   540PCS 988PCS 508PCS



If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
