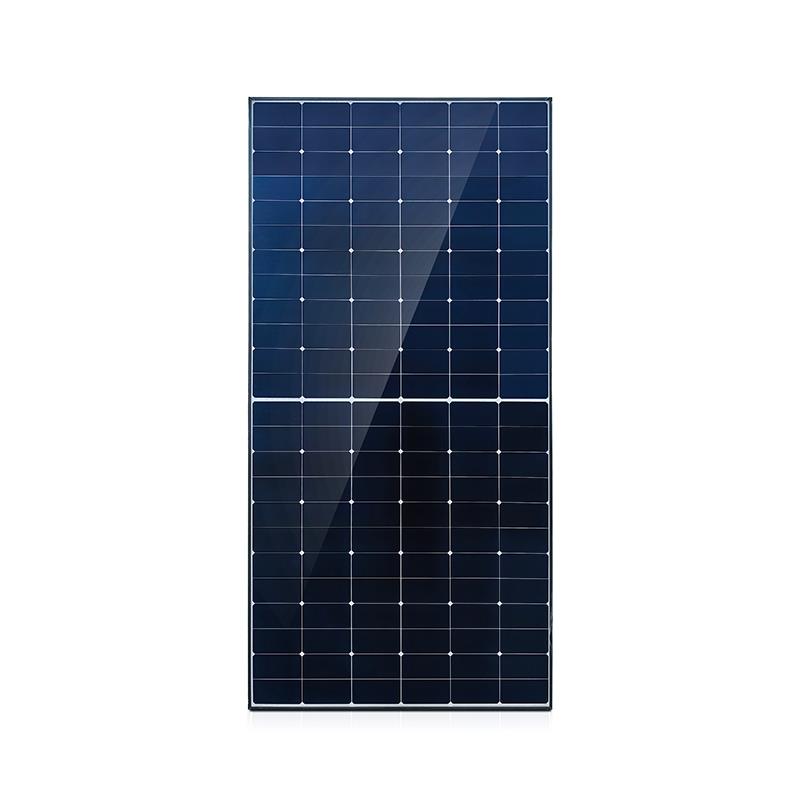

Solar panels

The core part in the solar power generation system. Its main function is to convert the sun's light energy into electrical energy, and the output DC power is deposited in the storage battery.
  QS410-108HM8 QS430-120HM8 QS440-120HM8 QS545-144HM8 QS550-144HM8
STC/NOCT STC NOCT STC NOCT STC 329 STC NOCT STC NOCT
Max.Power(Pmax) 410 309 430 322 440 10.4 545 405.1 550 410
Opt
OperatingCurrent(Imp)
12.98 10.62 12.85 10.28 13.01 31.6 13 10.41 13.32 10.64
Opt.
OperatingVoltage(Vmp)
31.59 29.2 33.73 31.36 33.95 11.06 41.93 38.93 41.28 38.46
ShortCircuitCurrent(lsc) 13.88 11.16 13.53 10.93 13.69 38.75 13.81 11.13 14.01 11.32
OpenCircuitVoltage(Voc) 37.45 35.2 40.83 38.53 41.05   49.9 46.73 49.8 47
ModuleEfficiency 21.00%   19.79%   20.25%   21.32%   21.40%
ModulePowerTolerance 0/±5W
OperatingTemperature -40℃~ 85℃
Max.SystemVoltage 1500VDC-(H)
Max.SeriesFuseRating 20A
ApplicationLevel A
STC Irradiance1000W/m,Celltemperature25℃,SpectrumAM1.5
NOCT Irradiance800W/m,Celltemperature20℃,SpectrumAM1.5,Windspeedlm/s



Mechanicaldata QS410-108HM8 QS430-120HM8 QS440-120HM8 QS545-144HM8 QS550-144HM8
Cell Type 182*182mm
Monocryspline,P/
182*182mmMonocrystalline,9BB/10BB
Cell Arrangement 108(6*9 6*9) 120(6*10 6*10) 120(6*10 6*10) 144(6*12 6*12) 144(6*12 6*12)
Dimensions 1722*1134*30mm 1916*1134*35mm 1916*1134*35mm 2256*1133*35mm 2279*1134*35mm
Weight 20.0kg±3% 24.5kg±3% 24.5kg±3% 28.4kg 29.4kg
Front Glass 3.2mm,HighTransmission,Lowlron,Tempered Glass
Frame Anodized aluminum alloy
J-Box IP68
Cable TUV(2pfg1169:2007)4.0mm²(0.006inches m²),(-)300/1100mm(43.3inches)and (+)300/1100mm(43.3inches)
Connector MC4



PACKING SPECIFICATION
Item 20GP 40HQ 17.5M Single package(40HQ,2PCS/CTN)
1722*1134*30mm 360PCS 936PCS 1800PCS 042PCS
1916*1134*35mm   744PCS 1332PCS 760PCS
2256*1133*35mm   620PCS 110PCS 644PCS
2279*1134*35mm 260PCS 620PCS 1170PCS 640PCS
