Mode |
TR1200 |
R260 |
ondition |

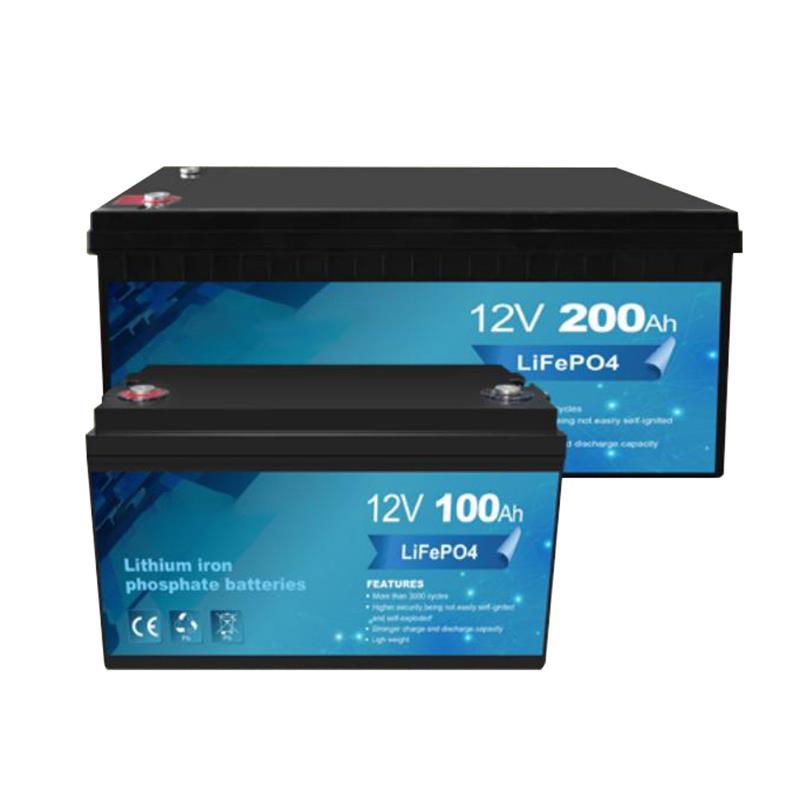

Cell type |
LiFeP04 |
LiFeP04 |
|
Rated capacity |
100AH |
200AH |
|
Nominal voltage |
12.8V |
12.8V |
|
Energy storage |
About 1280WH |
About 2560WH |
|
Maximum charging voltage |
14.6V |
14.6V |
25±2℃ |
Minimum discharge voltage |
10v |
10v |
25±2℃ |
Maximum continuous charging current |
100A |
150A |
25±2℃ |
Continuous maximum operating current |
100A |
150A |
25±2℃ |
Nominal charge and discharge current |
50A |
100A |
|
Rechargeable single battery protection |
3.75±0.025V |
|
Overcharge protection delay time |
1S |
|
Overcharge release voltage |
3.6±0.05V |
|
Discharge single battery protection |
2.5±0.08V |
|
Overdischarge protection delay time |
1S |
|
Overdischarge discharge voltage |
2.7±0.1V |
or charge release |
Overcurrent protection |
BMS |
|
Short circuit protection |
BMS |
|
Short circuit protection recovery |
Disconnecting the load or charging activation |
|
Size |
Long=329mm |
Long=522mm |
|
Wide=172mm |
Wide=240mm |
|
High=214mm |
High=:218mm |
|
weight |
≈11Kg |
≈20Kg |
60±25%R.H.Bare Cell (Single |
Operating temperature range |
Charge:0~45°℃ Discharge:-10~60℃ |
battery storage humidity |
|
|
range) |
Charge retention |
After charging the battery,place it under standard conditions or 20 days,then einfbargetetat 28os with a charge |
|
Battery housing |
ABS |
|
Charging and discharging interface |
M8 |
|
Cooling method |
Natural cooling |
/ |
|
1.Charging:50A to 14.6V |
1.Charging:100A to 14.6V 2.Keep the pressure constant to 0.02C and let it stand for |
|
|
2.Keep the pressure constant |
10min |
More than 70%of the initial |
cycle life |
to 0.02C and let it stand for 10min Discharge:50A to 10V |
3.Discharge:100A to 9.6V |
battery capacity 4000 cycle |
|
4.Shelving:10min |
4.Shelving:10min |
dl o00DOu 7000 Cycles dl |
|
5.Temperature:25±5℃ |
5.Temperature:25±5℃ |
50%DOD (25±5℃) |
Warranty period |
5years |
|
Series-parallel operation mode |
Up to 4 blocks in series or 4 blocks in paralle |
|
