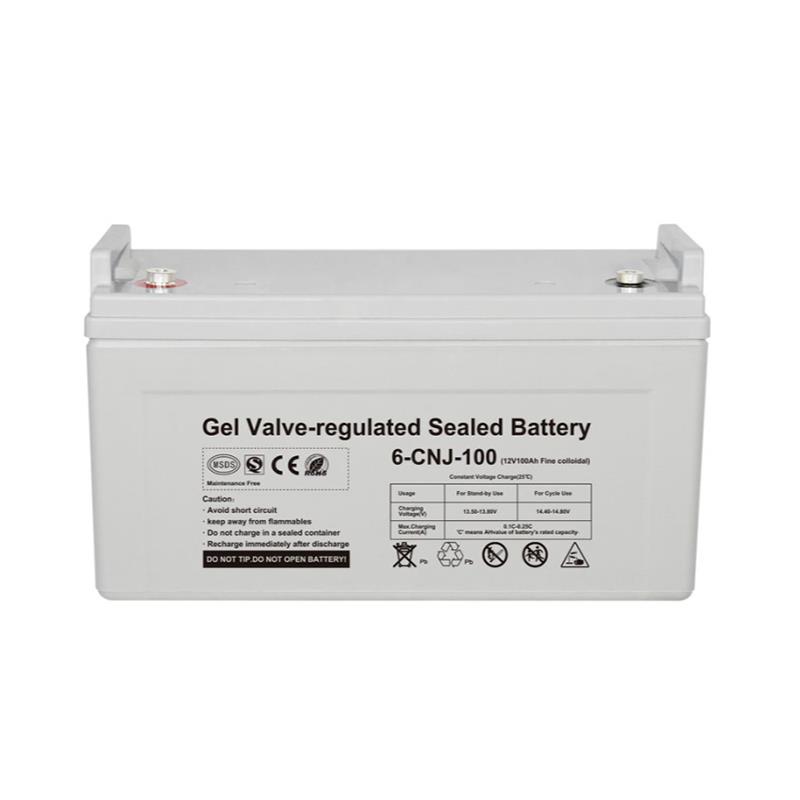

Valve controlled sealed gel battery is a new type of high energy battery developed by using advanced technology. There is no free electrolyte and no acid mist overflow during normal using. It is easy to maintain and use.
It can be widely used in solar energy, wind energy, telecommunication communication systems, and uninterruptable power supply(UPS). The designed service life of the product is more than 5 years.
| Mode | 6-CNJ-65Ah|6-CNJ-70Ah|6-CNJ-80Ah|6-CNJ-9OAh|6-CNJ-100Ah|6-CNJ-120Ah|6-CNJ-150Ah|6-CNJ-200Ah|6-CNJ-250 | ||||||||
| Rated voltage | 12V | ||||||||
| Capacity(10hr,1.80V/ cell,25℃) | 65Ah | 70Ah | 80Ah | 90Ah | 100Ah | 120Ah | 150Ah | 200Ah | 250Ah |
| Weight | 19Kg | 22.5Kg | 24.5Kg | 28.5Kg | 30Kg | 32Kg | 40.1Kg | 55.5Kg | 65.5Kg |
| Size(LxWxHmm) | 326x171x167 | 330x171x215 | 330x171x215 | 405x173x231 | 405x173x231 | ||||
| Max discharge current | 30l₁₀A(3min) | ||||||||
| Max charging current | ≤0.25C₁o | ||||||||
| Self-discharge(25℃) | ≤3%/MOON | ||||||||
| Recommended using | 15℃~25℃ | ||||||||
| temperature | |||||||||
| Cover Material | ABS | ||||||||
| Using temperature | Discharge:-45℃~50℃ Charge:-20℃~45℃ Storage:-30℃~40℃ | ||||||||
| Charging Voltage(25℃) | floating charge:13.5V-13.8V、equalizing charge:14.1V-14.4V | ||||||||
| Charging Mode(25℃) | Float Charge:2.275±0.025V/Cell 、Temperature parameters:±3mV/Cell'C、Cycle Charge:2.45±0.05V/ Cell、Temperature Compensation Coefficient:±5mV/Cell℃ | ||||||||
| Cycle life | 100%DOD 572 times、50%DOD 1422 times、30%DOD 2218 times | ||||||||
| Capacity affected by temperature | 105%@40℃、90%@0℃、70%@-20℃ | ||||||||
NOTE: The above dala are average values and can be obtained wihin 3 chargeldischarge cydles.
These are not minimum values. Cell and battery designs/speccifications are subject to modification without notice.
