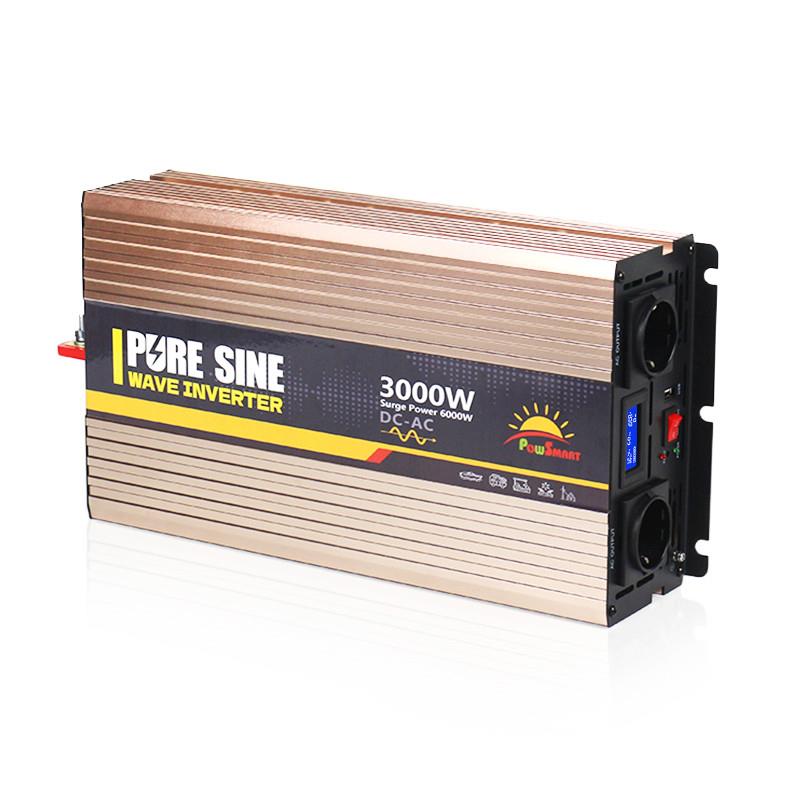

Model | REP3000-121 | REP3000-241 | REP3000-481 | REP3000-122 | REP3000-242 | REP3000-482 |
Rated power | 3000W | |||||
Peak power | 6000W | |||||
Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
Unload current less than | 1A | 0.7A | 0.4A | 1A | 0.7A | 0.4A |
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
Output waveform | Pure Sine Wave | |||||
Waveform distortion | THD<3%(Linear load) | |||||
USB port | QC3.0 | / | QC3.0 | / | ||
Max.efficiency | 90% | 92% | 95% | 90% | 92% | 95% |
Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | 12.3±0.5V | 24±0.5V | 48±1V |
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||
Over voltage | LED Red light on, shut down | |||||
Over load | LED Red light on, shut down | |||||
Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
Short circuit | LED Red light on | |||||
Input reverse polarity | Fuse burn-out | |||||
Working temperature | -10°- 50° | |||||
Storage temperature | -30°- 70° | |||||
Dimension(mm) | 415x205x95mm | |||||
Packing(mm) | 453x252x150mm | |||||
Net./gross weight(g) | 4950/5800g | |||||
QTY/Ctn | 4 Pcs | |||||
Meas./Ctn(mm) | 475x328x535mm | |||||
Gross weight/Ctn(g) | 23200g | |||||
Warranty | 2 years | |||||

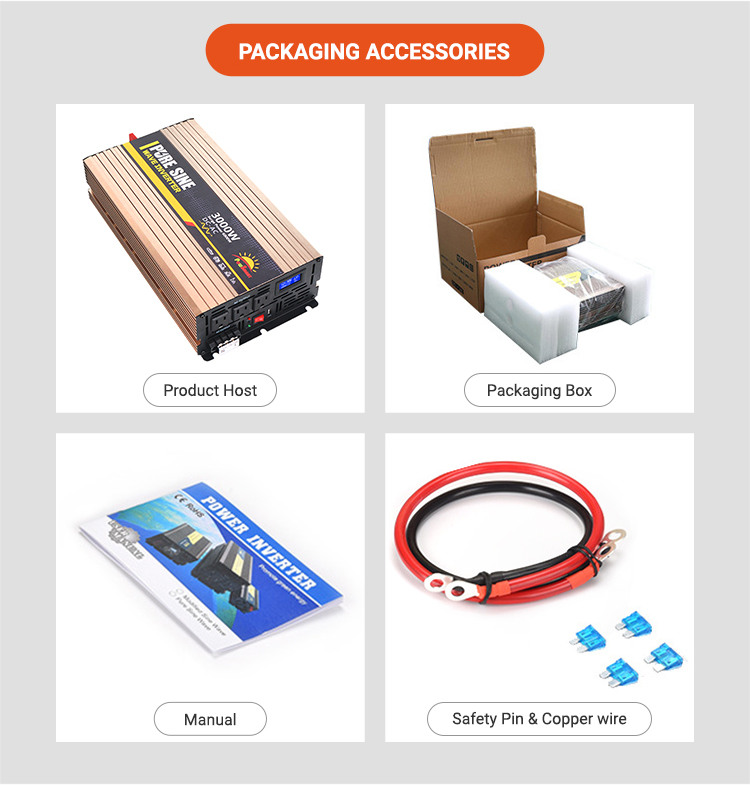

Configuration | Standard | |||||

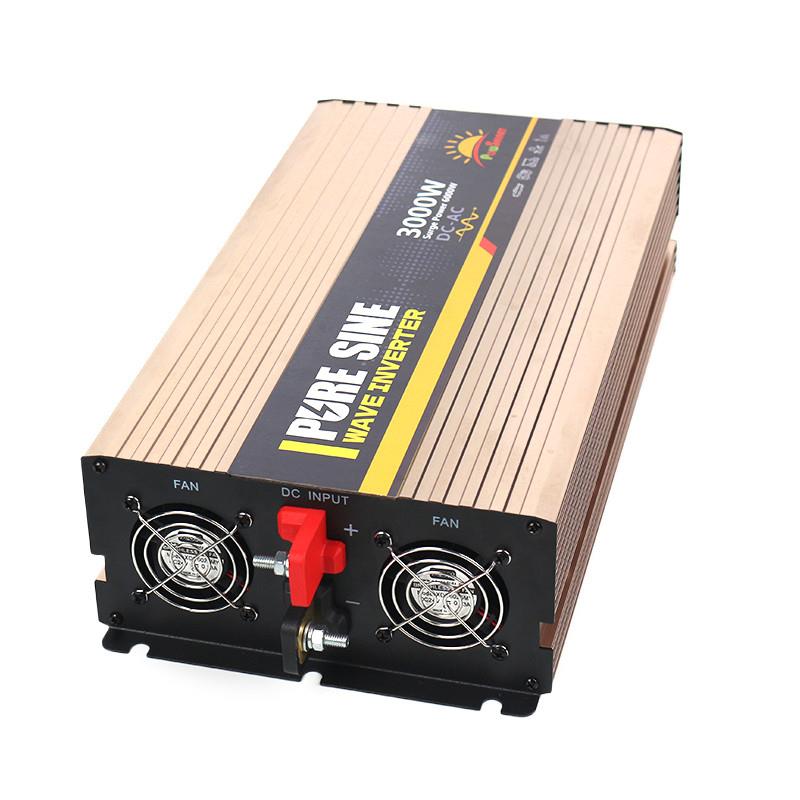

Cooling method | Intelligent air cooling | |||||
Custom-made available: Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V... |
