| Model | REPU-5000 | ||||||
| Rated power | 5000W | ||||||
| Peak power | 10000W | ||||||
| Input voltage | DC12V | DC24V | DC48V | ||||
| Output voltage | 220VAC or 230VAC or 240AC±5% | ||||||
| Unload current less than | 1.2A | 0.8A | 0.5A | ||||
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
| Output waveform | Pure Sine Wave | ||||||
| Waveform distortion | THD<3%(Linear load) | ||||||
| USB port | QC3.0 | / | |||||
| Max.efficiency | 90% | 92% | 95% | ||||
| Charge current | 40A | 20A | 10A | ||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | ||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | ||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | ||||
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | ||||
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||
| Protect function |
Low voltage | Alarm at first, voltage continuously reduce. LED Red light on & shut down | |||||
| Over voltage | LED Red light on, shut down | ||||||
| Over load | LED Red light on, shut down | ||||||
| Over temperature | Alarm at first, tempurature continuously rise. LED Red light on & shut down | ||||||
| Short circuit | LED Red light on | ||||||
| Input reverse polarity | Fuse burn-out | ||||||
| Working temperature | —10°— 50° | ||||||
| Storage temperature | —30°— 70° | ||||||
| Dimension(mm) | 475*205*152 | ||||||
| Packing(mm) | 565*302*240 | ||||||
| Net./gross weight(g) | 9040/11500 | ||||||
| QTY/Cth | 1Pcs | ||||||
| Meas.Ctn(mm) | 565*302*240 | ||||||
| Warranty | 2 years | ||||||

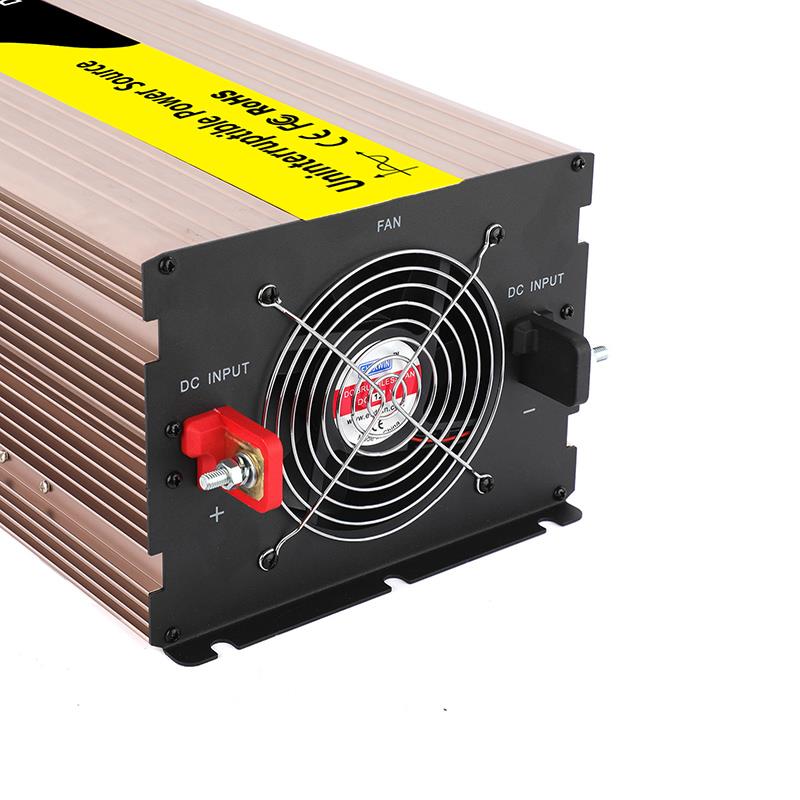

| Cooling method | Intelligent air cooling | ||||||
